High-voltage power supplies

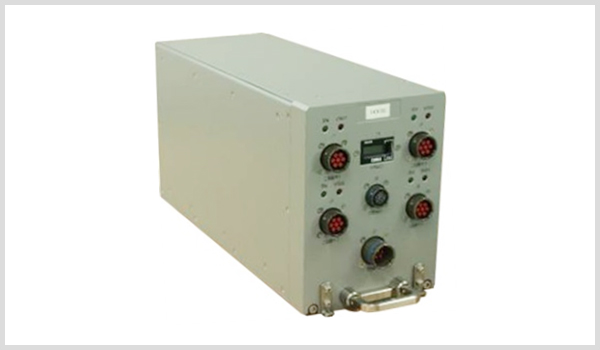

HVPS, drives 4 FE type mini TWTs simultaneously or individually, satisfies warship environmental requirements

input power	1,600W
input voltage	220Vac 60Hz 3-phase
output power	50W or higher (4Ch)
output voltage(4Ch)	Cathode : -4,750Vdc Collector1 : +2,250Vdc Heater : -6.45Vdc FE(on/off) : 0/-1,000Vdc
characteristics	Active arcing safety(independent driving)

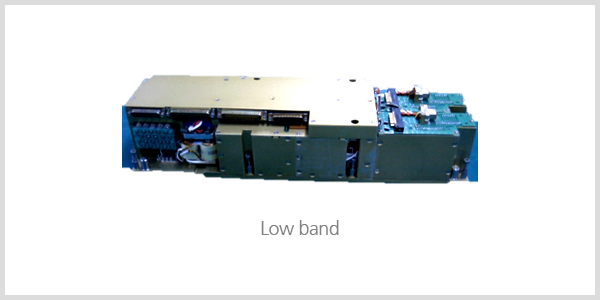

HVPS applied to the aircraft electronic warfare system (ALQ-200) is a HVPS for high output amplifier that neutralizes threat by emitting jamming sig

input power	2,000W
input voltage	3-phase 115Vac 400Hz
output voltage	Cathode : -5,000Vdc Collector1 : +3,250Vdc Collector2 : +2,050Vdc Heater : -6.3Vac Grid(on/off) : +114/-10Vdc
characteristics	drives two 200W TWTs satisfies requirements for aircraft

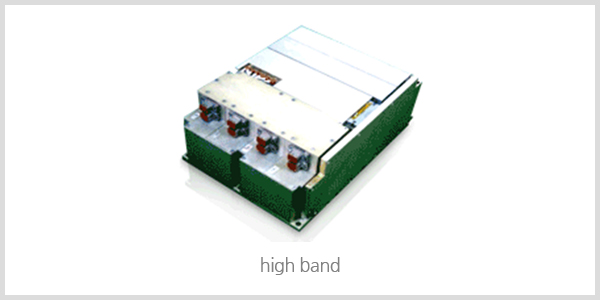

input power	2,200W
input voltage	3-phase 115Vac 400Hz
output voltage	Cathode : -4,050Vdc Collector : +2,150Vdc Heater : -6.3Vac FE(on/off) : -0/-1,000Vdc
characteristics	drives eight 50W TWTs satisfies requirements for aircraft

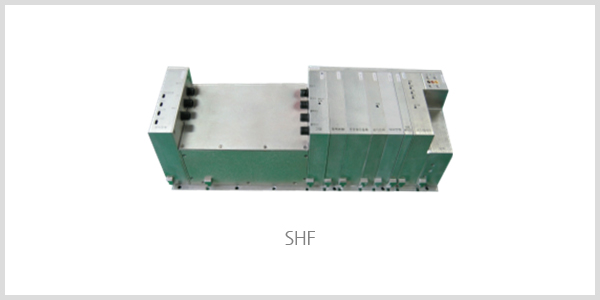

Drives high output, low noise CW TWT

input power	2,300W
input voltage	+380Vac
output voltage	Cathode : -11,000Vdc Collector1 : +6,700Vdc Collector2 : +4,400Vdc Heater : -6.3Vdc FE(on/off) : -6/-1,750Vdc
characteristics	drives one 750W TWT Component of satellite communication vehicle terminal's TWTA satisfies vehicle terminal requirements

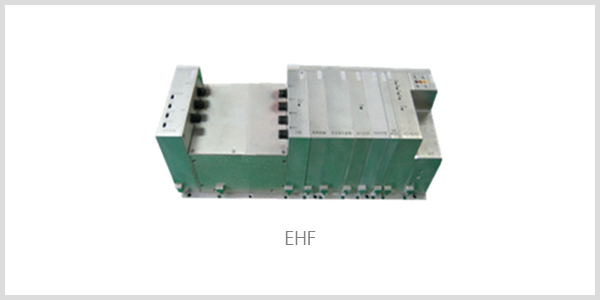

input power	1,300W
input voltage	+380Vac
output voltage	Cathode : -14,100Vdc Collector1 : +5,600Vdc Collector2 : +2,800Vdc Heater : -6.3Vdc< FE(on/off) : -22/-1,300Vdc
characteristics	one 100W TWT unit Component of satellite communication vehicle terminal TWTA satisfies vehicle terminal loading performance
